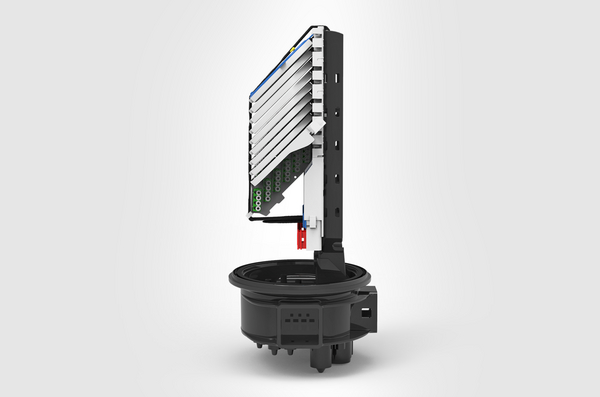

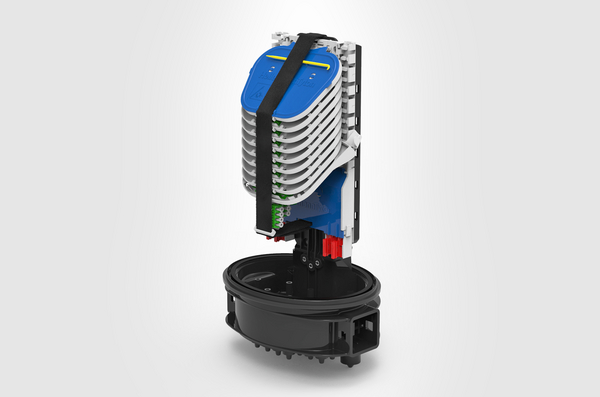

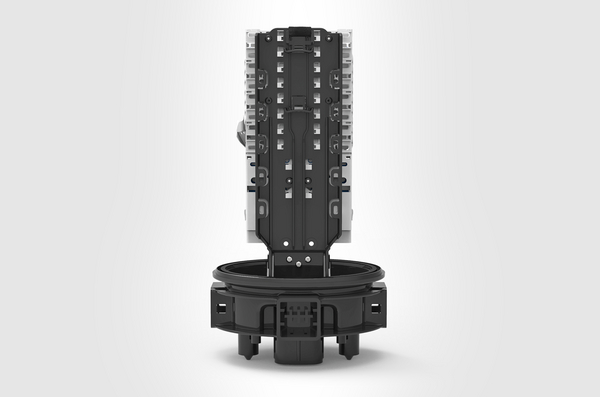

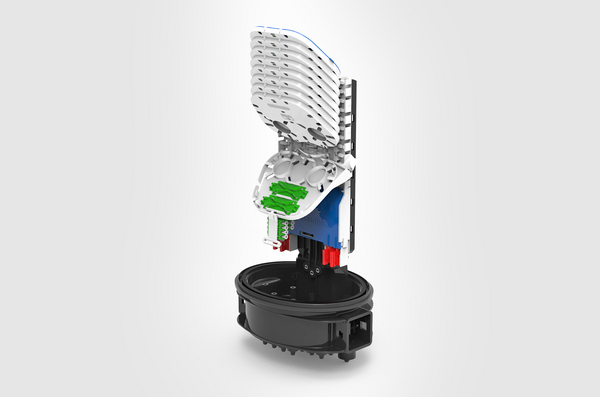

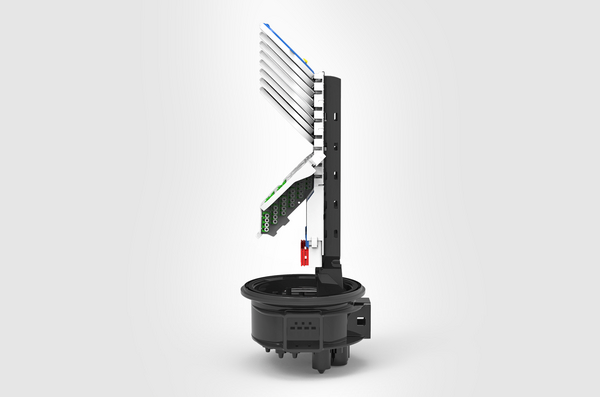

CFNIRS 27 Port M Length with 8 Compact SE-IR Trays and LC/APC Connectorised Tray
Art.nr. 857-02792
| CFNIRS-MXBBWX-CT24-LC/APC
|
Detaljer
- Maximum 24 LC/APC Connections
- Maximum196 fibre splice capacity
- 26 round ports and 1 oval port
- Foam Entry Block
- Positive fibre management to ensure consistent 15mm bend radius throughout
- Fibre storage basket for loop through applications
- Bi-directional fibre routing
- Supplied with 8 SE-IR 3A Splice Trays
- Maximum 24 splices per tray (double stacked)

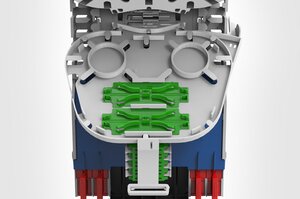

- Additional off tray splitter accommodation
- Cablelok compatible for all port sizes
- Quick release cover
- Optional pressure release valve
Flere produkter i denne produktgruppen:
Antall brett | Connectrosied Tray x 1 SE-IR 3A Splice Tray x 8 |
Antall porter | 1, 2, 24 |
Antall pr. | eske |
Farge | Sort (BK) |
Forseglingsmetode | Cablelok |
GLOBAL PART DESCRIPTION | CFNIRS-MXBBWX-CT24-LC/APC |
Kabel Ø max. | 16.5mm |
Kabel Ø min. | 1.7mm |
Lokkk type | M |
Materiale | Polypropylen, UV-resistent (PPUV), Polyamid 6.6 glassfiberforsterket (PA66GF60) |
Port | LM, B, R |
Skjøt kapasitet | 196 |
Type | CFNIRS-MXBBWX-CT24-LC/APC |
Type brett | Compact Connectorised |
Variant | Utendørs FTTx skjøteboks |
